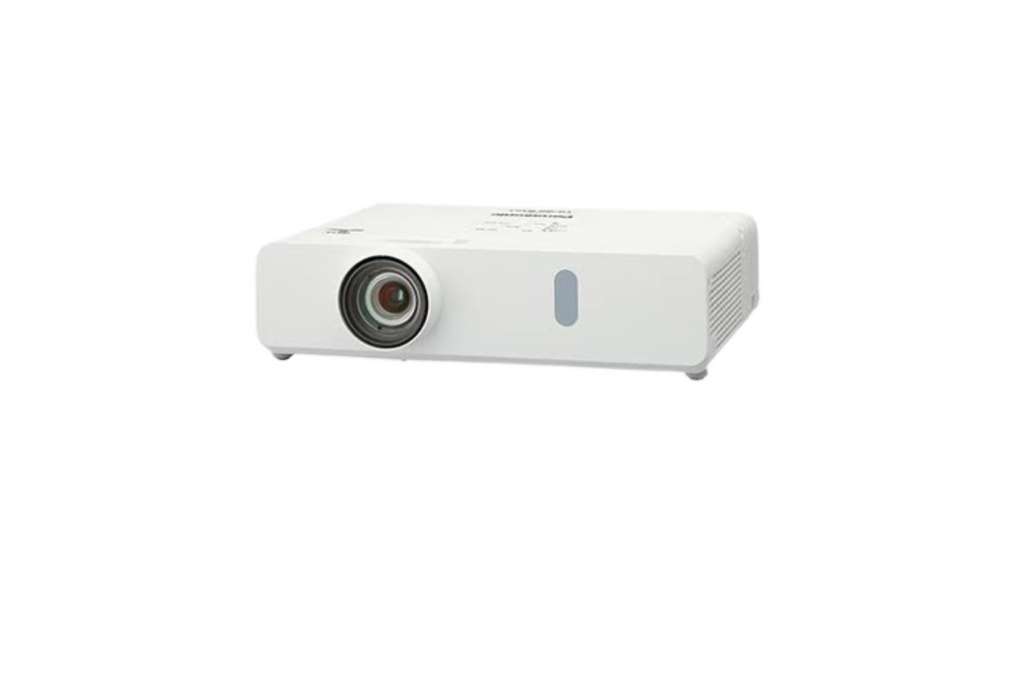

Projector Panasonic PT-VW360
The PT-VW360 Series makes point-and-shoot projection easy in any space. With up to 4,500 lm*1 and 20,000:1 Dynamic Contrast, HD images*2 are vivid and sharp. Optional wireless module frees content from cables, while Corner Keystone Correction aligns pictures when projecting off-axis. Working flawlessly for 7,000 hours*3 before servicing, this light but rugged portable hits the ground running for effortless presentation.
Lens
PT-VW360 |
||
---|---|---|
LCD panel | ||
Panel size | 15.0 mm (0.59 in) (16:10 aspect ratio) | |
Display method | Transparent LCD panel (x 3, R/G/B) | |
Pixels | 1,024,000 (1280 x 800) pixels | |
Screen size (diagonal) | 0.76–7.62 m (30–300 in), 16:10 aspect ratio | |
Resolution | 1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1280 x 800 pixels) |
|
Brightness*1 | 4,000 lm (input signal: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: Off, Daylight View: Off, Auto Power Save: Off) |
|
Lamp | 240 W x 1 lamp | |
Lamp replacement cycle | NORMAL: 5,000 hours / ECO: 7,000 hours | |
Center-to-corner uniformity*1 | 85 % | |
Contrast*1 | 20,000:1 (Full On/Off) (input signal: PC, lamp power: NORMAL, picture mode: Dynamic, Iris: On, Daylight View: Off, Auto Power Save: Off) |
|
Optical axis shift | 49:1 (fixed) | |
Keystone correction range | Vertical: ±35° (±30° when using AUTO) Horizontal: ±35° | |
Installation | Ceiling/floor, front/rear | |

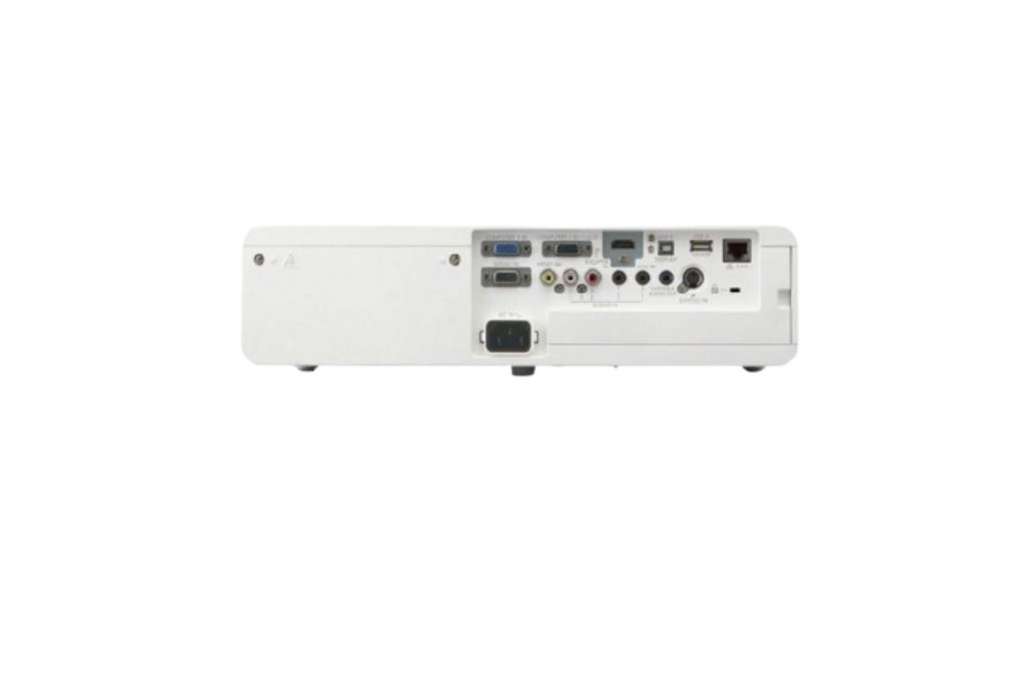

Terminals | ||
HDMI 1/2 IN | HDMI 19-pin x 2 (compatible with HDCP, Deep Color), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) | |
COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB, YPBPR, YCBCR, Y/C) | |
COMPUTER 2 IN/1 OUT | D-sub HD 15-pin (female) x 1 (RGB, YPBPR, YCBCR), (input/output selectable using on-screen menu) | |
VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
AUDIO IN 1 | M3 Stereo Mini Jack x 1 (L-R x 1) | |
AUDIO IN 2 | M3 Stereo Mini Jack x 1 (L-R x 1) | |
AUDIO IN 3 | Pin jack x 2 (L, R x 1) | |
VARIABLE AUDIO OUT | M3 Stereo Mini Jack x 1 (L-R x 1) for output | |
LAN | RJ-45 x 1 (for network connection, compatible with PJLink™ [Class 1], 10BASE-T/100BASE-TX) |
